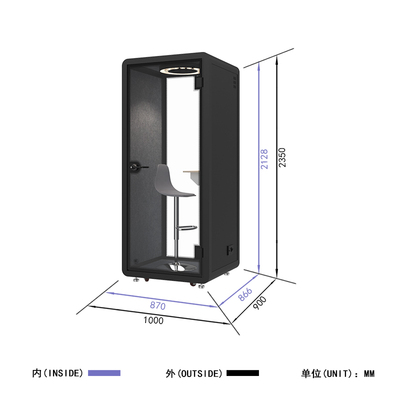

Dimension: 1000w*900d*2350h mm
Integrated 4000K natural light (variable three-color light)
Includes anti-static and stain-resistant low loop pile carpet
Power supply system (socket, switch, network interface)
Fresh air system, steel caster...
Dimensions
Inside the cabin: 870w*866d*2128h mm
Hatch: 816w*10d*2083h mm
Whole cabin weight
Net weight: 230kg
Gross weight: 270kg
Model: YYH-L

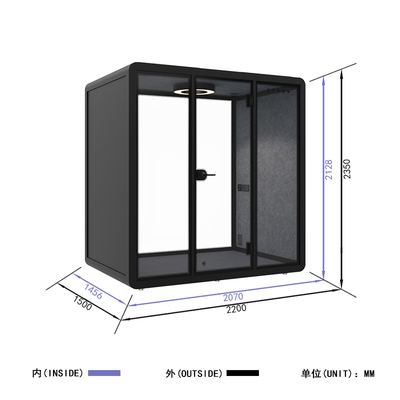

Office booths
Dimension: 2200w*1500d*2350h mm
Integrated 4000K natural light (variable three-color light)
Includes anti-static and stain-resistant low loop pile carpet
Power supply system (socket, switch, network interface)
Fresh air system, steel caster...
Dimensions
Inside the cabin: 2070w*1456d*2128h mm
Hatch: 816w*10d*2083h mm
Whole cabin weight
Net weight: 520kg
Gross weight: 600kg
Model: YYH-M
soundproof telephone booth
Dimension: 1500w*1250d*2350h mm
Integrated 4000K natural light (variable three-color light)
Includes anti-static and stain-resistant low loop pile carpet
Power supply system (socket, switch, network interface)
Fresh air system, steel caster...
Dimensions
Inside the cabin: 1370w*1206d*2128h mm
Hatch: 727w*10d*2083h mm
Whole cabin weight
Net weight: 390kg
Gross weight: 470kg
Model: YYH-2L
Meeting pods
Dimension: 2200w*2100d*2350h mm
Integrated 4000K natural light (variable three-color light)
Includes anti-static and stain-resistant low loop pile carpet
Power supply system (socket, switch, network interface)
Fresh air system, steel caster...
Dimensions
Inside the cabin: 2070w*2056d*2128h mm
Hatch: 816w*10d*2083h mm
Whole cabin weight
Net weight: 610kg
Gross weight: 700kg
Model: YYH-SL

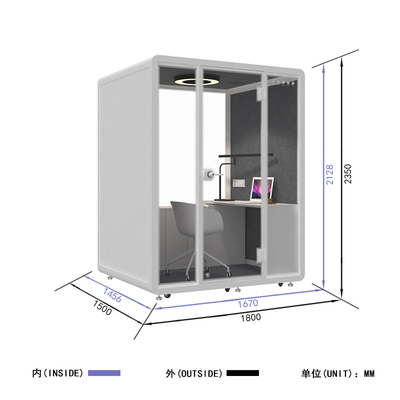

Office Pods
Dimension: 1800w*1500d*2350h mm
Integrated 4000K natural light (variable three-color light)
Includes anti-static and stain-resistant low loop pile carpet
Power supply system (socket, switch, network interface)
Fresh air system, steel caster...
Dimensions
Inside the cabin: 1670w*1456d*2128h mm
Hatch: 727w*10d*2083h mm
Stock colors
Black/white (can be customized)
Model: YYH-3L

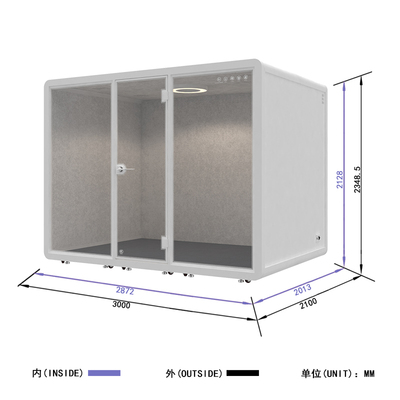

meeting pods for offices
Dimension: 3000w*2100d*2350h mm
Integrated 4000K natural light (variable three-color light)
Includes anti-static and stain-resistant low loop pile carpet
Power supply system (socket, switch, network interface)
Fresh air system, steel caster...
Dimensions
Inside the cabin: 2872w*2013d*2128h mm
Hatch: 816w*10d*2083h mm
Stock colors
Black/white (can be customized)
Our soundproof pod has beautified the edges of each glass, and the overall image of the product has been significantly improved.
Furniture Option
For save you time, Youyinhui designers have preset different specificationsfurniture for different usagefor you.
Safety Power&Net Strip
Each soundproof booths is equipped with an internationally accepted 86-type five-hole USB and a 13A British socket with two or three plugs and a switch panel.
Power Supply
Compatible with 100-240V/50-60HZ and 12V-USB power supply systems, it can easily meet the use of mainstream electrical appliances in life.
Fresh air system
Each acoustic pods is designed with a low-noise fresh air system, which only need 3-5 minutes to renew the indoor air. Large-scale cabins are also equipped with air conditioners.
Sound absorption & sound insulation
The office quiet pods wall is composed of sound-absorbing cotton + bamboo fiber board (hollow structure) and 10mm thick soundproof tempered glass. With great sound proof effect.
LED Lighting
The sound proof podsis equipped with a 6000k three-color temperature 220w LED ceiling lamp, which can basically meet the lighting needs of the pods.
Sound proof glass
The glass is assembled from 10mm thick single-layer tempered glass and putted an explosion-proof film on each piece of glass.
Wear-resistant exterior trim
The sound proof board are environmentally friendly, wear-resistant, anti-pollution, fire-proof, and moisture-proof, and the color is optional
Sound-absorbing interior
The interiors are made of polyester fiber boards that are sound-absorbing, environmentally friendly, flame retardant, decorative and easy to process. The thicknessis 9mm, and the thickness can be adjusted.
Steel Universal wheel
For facilitate movement, each acoustic booths is equipped with steel universal wheels, and a steel foot cup (Except S model).
Air Filter Net
Equipped with a double-effect composite filter layer + HEPA + composite t-carbon adhesion layer made of nano materials, which effectively filters PM2.5, formaldehyde, toluene, TVOC, etc.
